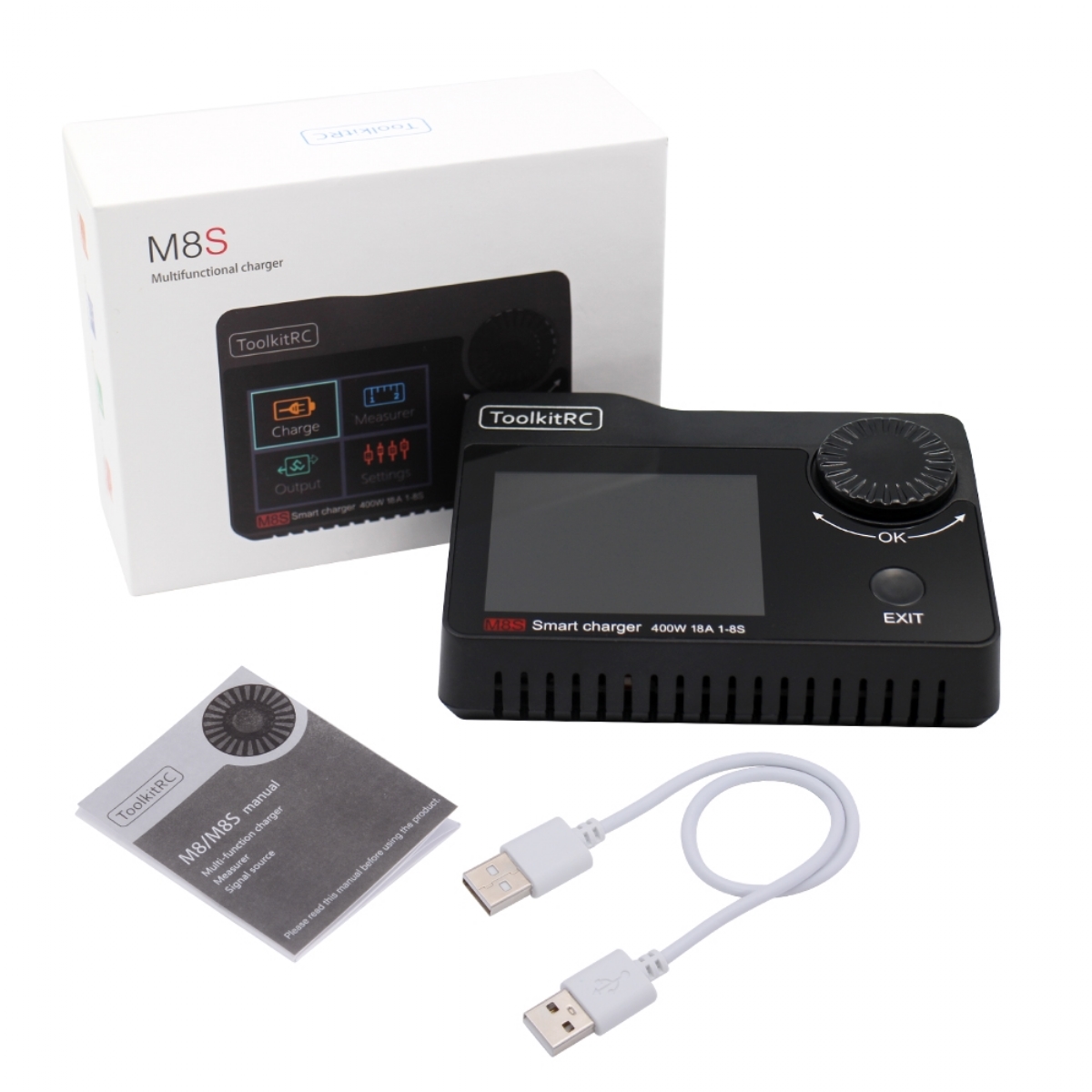

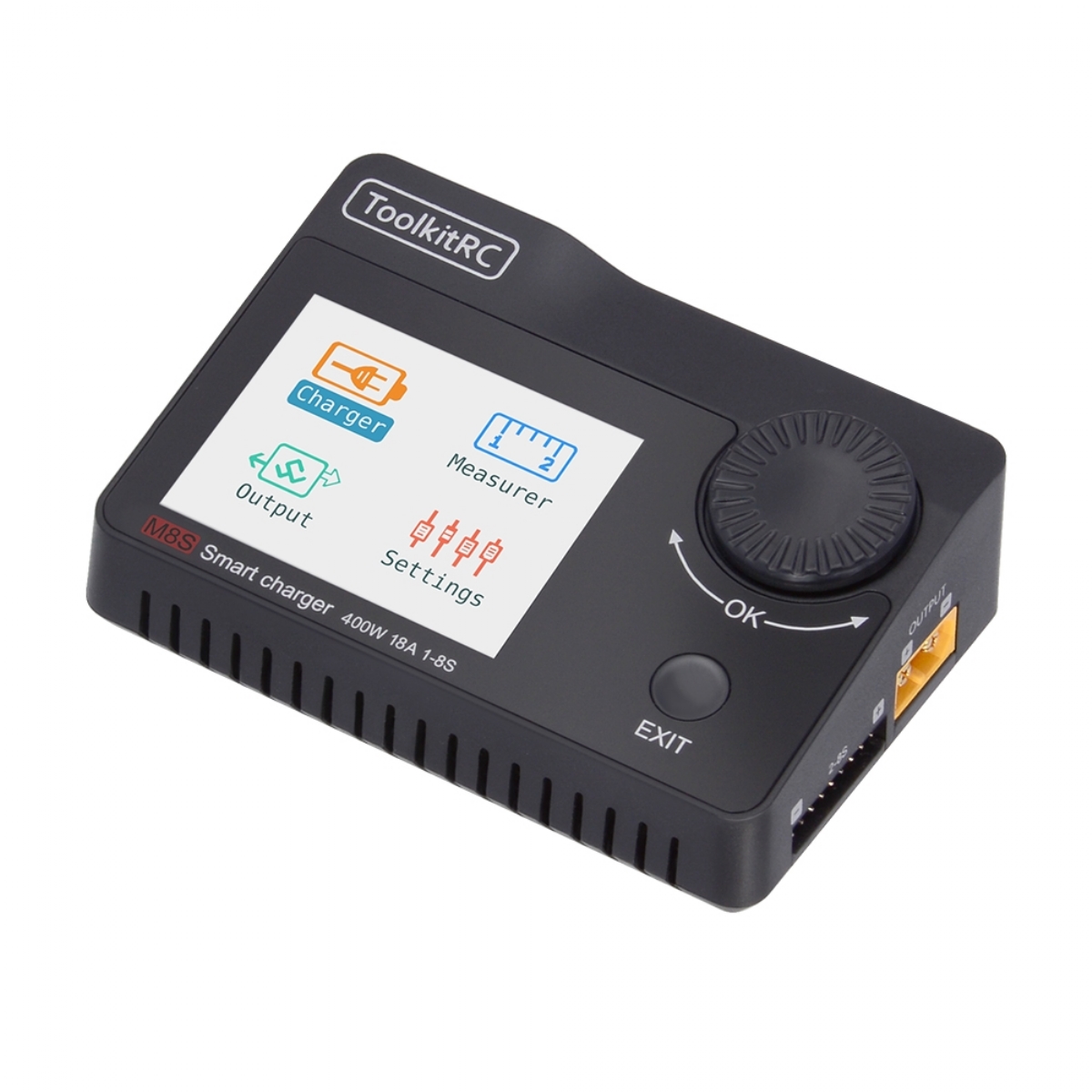

ToolkitRC M8S 400w 18A - Color Screen Compact DC Charger

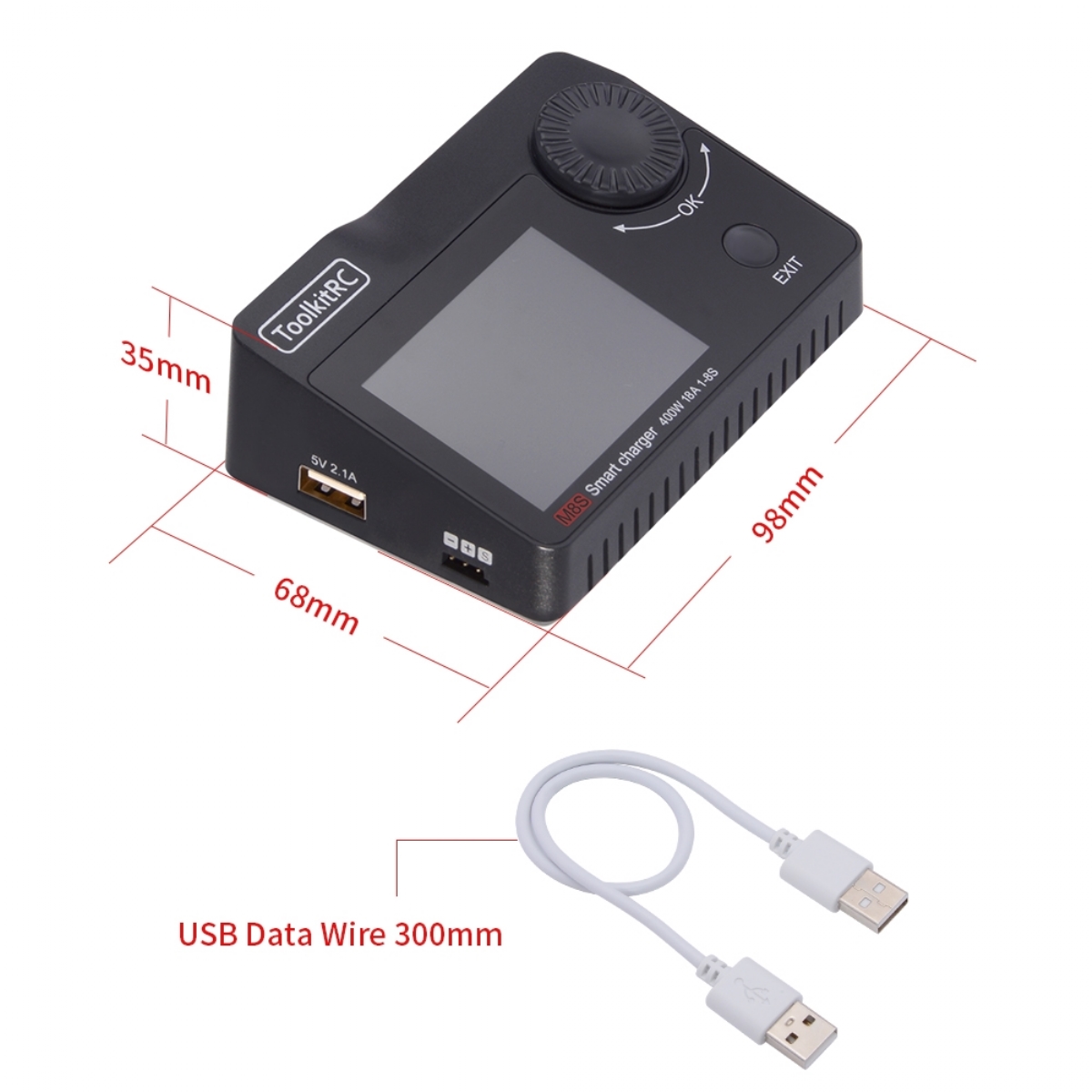

ToolkitRc - M8s 400w 18A Color Screen Compact DC Charger & Measurement Device The new ToolkitRc M8 is much more than just another charger! With a 300w and 15A Charger at its heart the M6 also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control. Features 2.4" Color Screen Battery Charger Cell Checker Servo Tester PWM,PPM.SBUS Input/output Receiver & Flight control tester Viable AMp/volt DC Power supply (Required external DC input) Specification Charging Input 7-30V: @MAX18A Battery Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S Bal Current: 800mA @2-8S Accuracy: ±0.01V Charging Power 0.1-18A @ 400W Discharging Power 0.1-18A @ 400W Recycle Mode 0.1-5A @ 20W Normal Mode USB 2.1A @ 5.0V upgrade Measuring PWM 880us-2200us @20-400Hz PPM 880us-2200us*8Ch @20-50hz SBUS 880us-2200us*16ch @20-100Hz Voltage 1.0V-5.0V @1-8S IR 1-100mR @1-8S Output PWM 500us-2500us @20-1000Hz PPM 880us-2200us*8ch @50hz SBUS 880us-2200us*16ch @74Hz Power 1-18A @ 1-30V Mode: CC+CV Display:LCD TFT 2.4 inch 320*240 resolution Product Size 98mm*68mm*35mm Weight 170g Packing: Size 108.5mm*80.5mm*46mm Weight 255g
