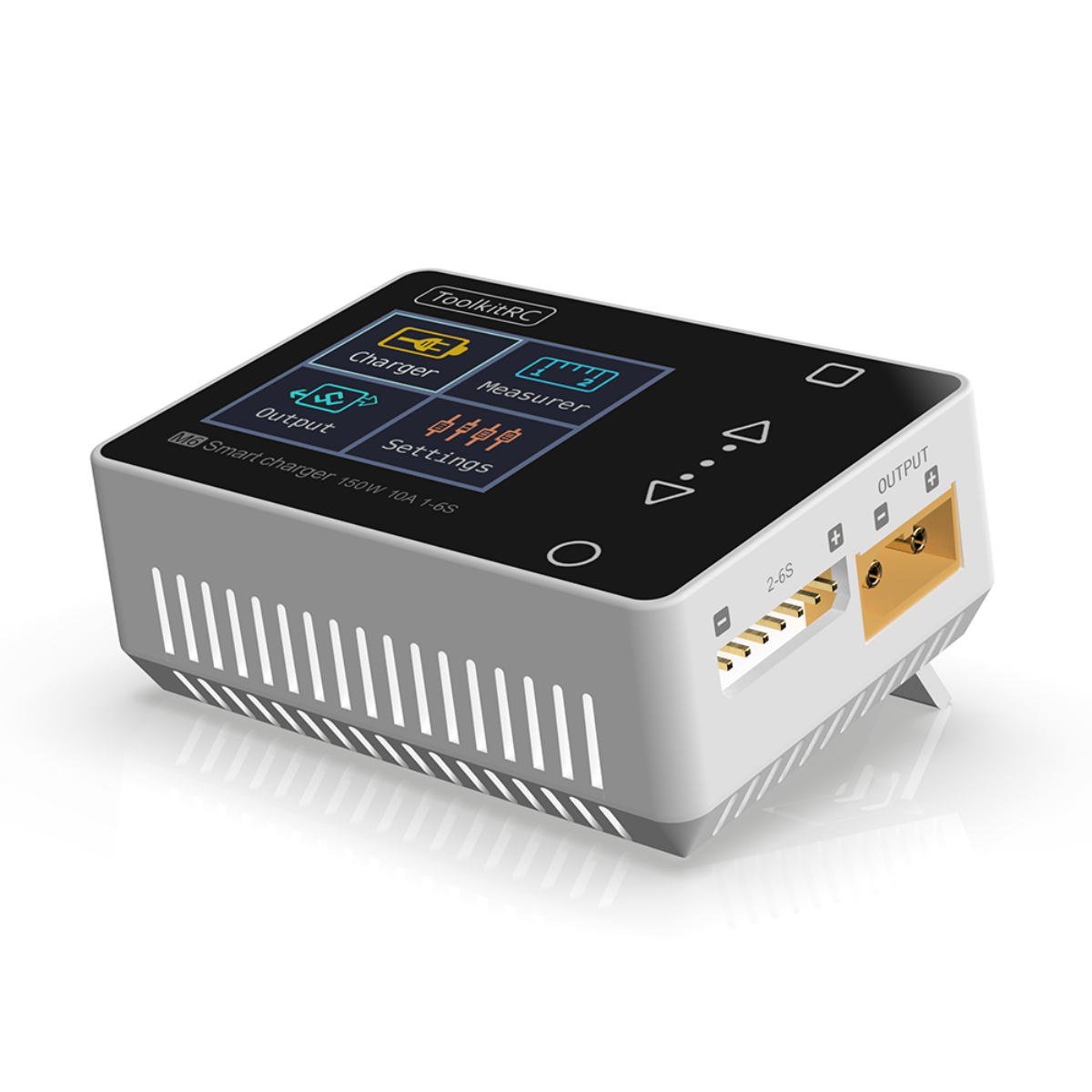

ToolkitRC M6 150w 10A 1-6S - Color Screen Multi-function Micro Charger

ToolkitRC - M6 150w 10A 1-6s Color Screen Multi-function Micro Pocket charger and Diagnostics tool kit The M6 is the worlds smallest 150w color screen charger! With a 150w and 10A Charger at its heart the M6 also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control. Features Battery Charger Cell Checker Servo Tester PWM,PPM.SBUS Input/output & Receiver tester Viable AMP/volt DC Power supply (Required external DC input) Functions ? Lithium battery cut-off voltage can be set (TVC function) ? Measure battery voltage, internal resistance, balance ? Measure PWM / PPM / xBUS signal values, Accuracy 1ms ? Output PWM / PPM / xBUS standard signal, Accuracy 1ms ? Customizable 1-28V constant voltage, 1-10A constant current ? Charge the drone battery, activate and charge. ? Multi-language optional ? USB 2.1A@5.0V Output,for Mobile devices ? Udisk firmware upgrade (Slave device) Specs Input voltage: 7.0-28V @MAX 12A Type of battery: Lipo LiHV LiFe Lion @1-6S NiMh @1-16S Pb @1-10S Charge power: 150W @MAX 10A Discharge power: 150W @MAX 10A Recycle mode 8W @ 2A Normal mode USB: 2.1A @5.0V or Upgrade Dimensions: 68*49*26 mm Weight: 80g LCD: 1.8inch TFT RGB, 160*128 Pixel Measurement PWM: 880-2200us @20-400Hz PPM: 880-2200us*8CH @20-50Hz SBUS: 880-2200us*16CH @20-100Hz Voltage: 1.0-5.0V @1-6S IR: 10-99mR @1-6S Output PWM: 500-2500us @20-1000Hz PPM: 880-2200us*8CH @50Hz SBUS: 880-2200us*16CH @74Hz Power: 1-10A @1-28V Mode:CC+CV Packing Informations: Weight:140g Size:80*80*35mm
