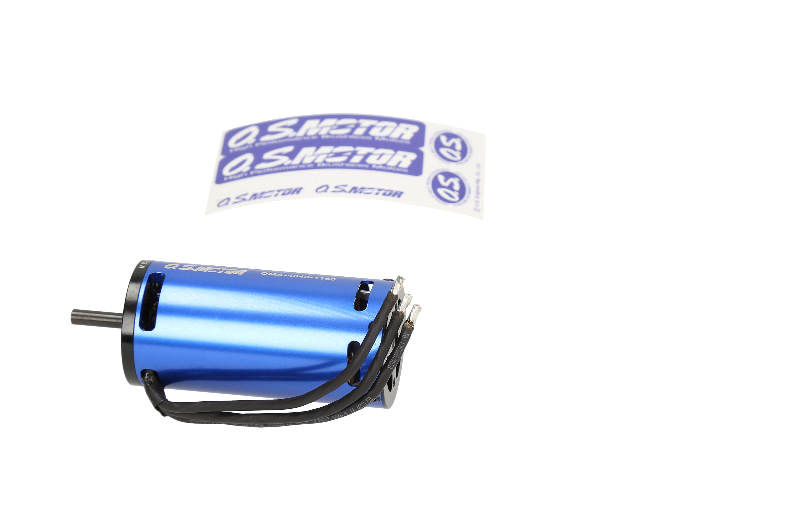

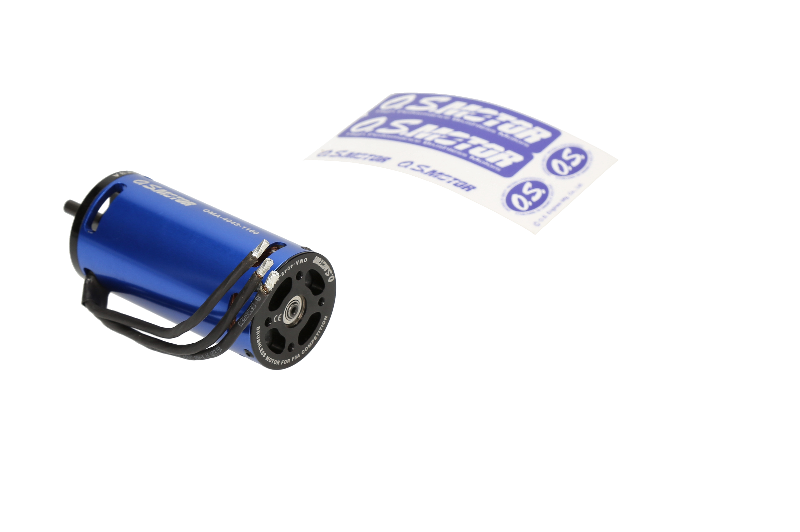

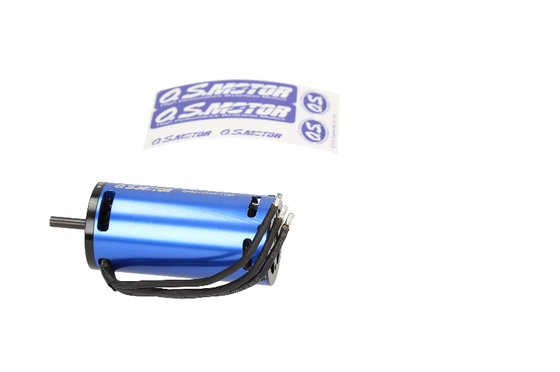

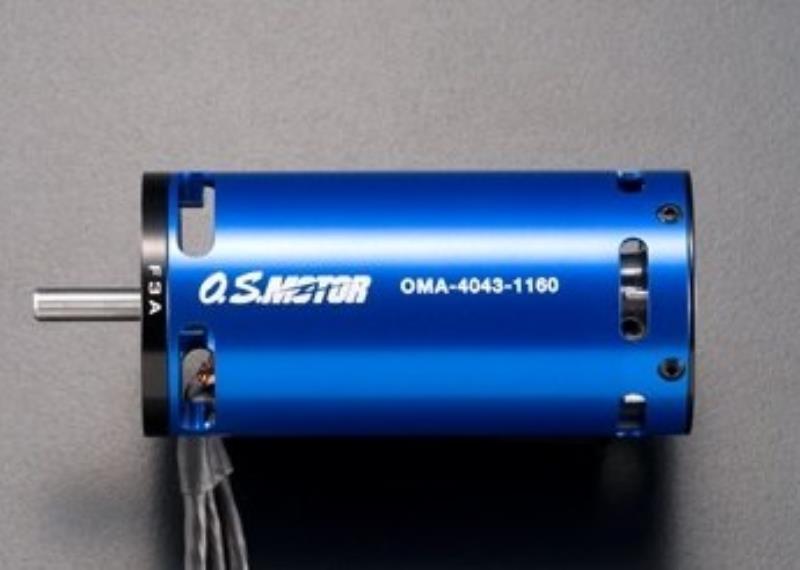

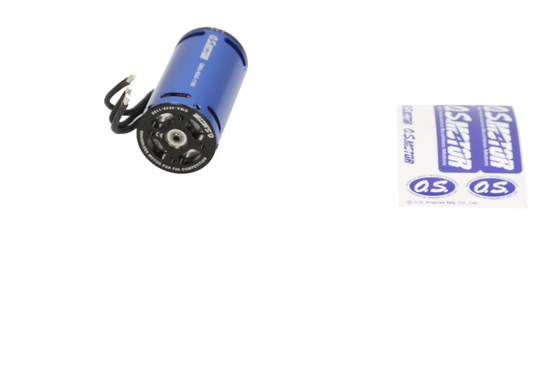

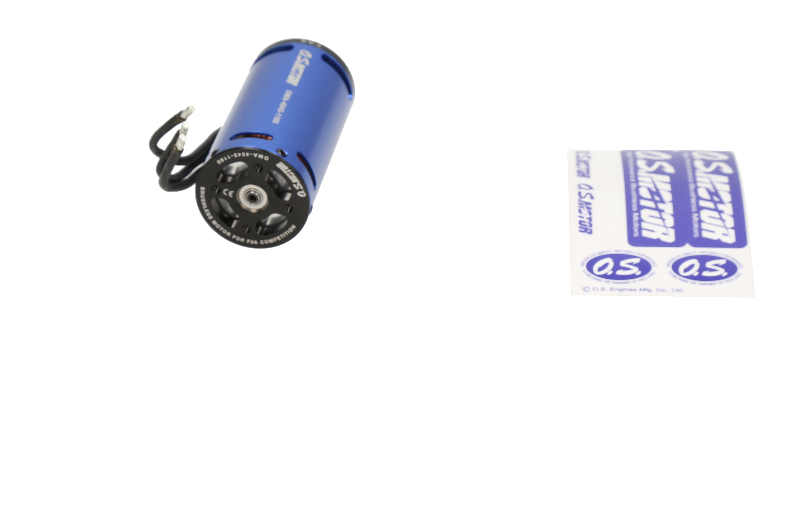

Standard component of OMR-4043-172 F3A Motor Reduction (OS-51020130).
Specifications
Power / LiPo 10 cell (37V~42V)
Total diameter / W60xH90 (except the front mount)
Body length / 135.2mm b (mount surface to motor rear end)
Shaft diameter / 8mm
Shaft length / 46.9mm s (mount surface to shaft-tip)
Weight / 625g
Vltage / 37V
Current / 80A
No-load current / 1.9A
Maximum current (5 seconds) / 125A
Maximum efficiency / 92%
KV / 172r.p.m./V
Specifications
Power / LiPo 10 cell (37V~42V)
Total diameter / W60xH90 (except the front mount)
Body length / 135.2mm b (mount surface to motor rear end)
Shaft diameter / 8mm
Shaft length / 46.9mm s (mount surface to shaft-tip)
Weight / 625g
Vltage / 37V
Current / 80A
No-load current / 1.9A
Maximum current (5 seconds) / 125A
Maximum efficiency / 92%
KV / 172r.p.m./V
Marke:
OS Engines
Hersteller-Nummer:
51020140
